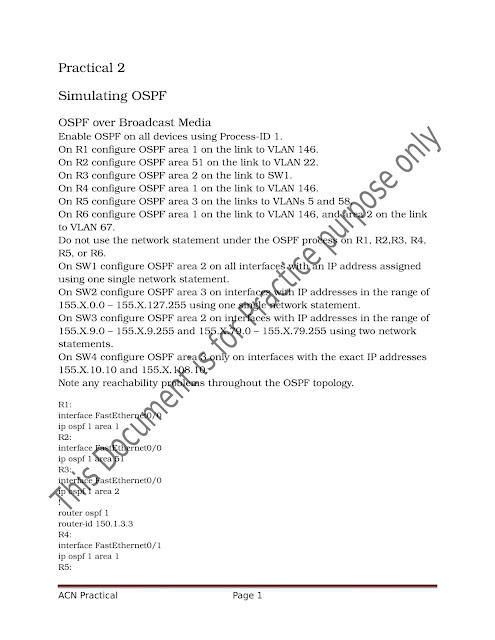

Simulating OSPF

Simulating OSPF

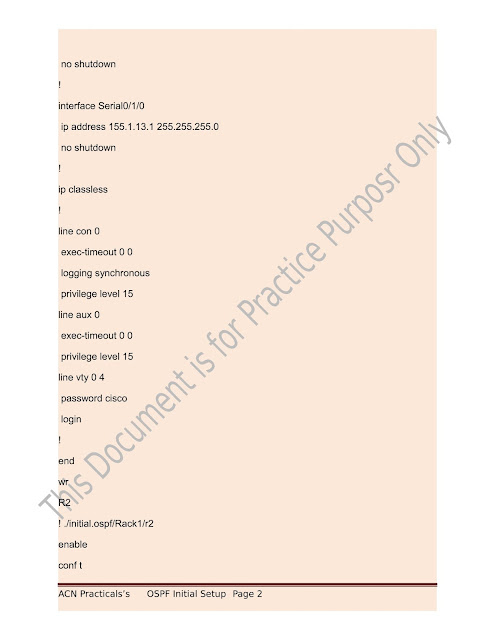

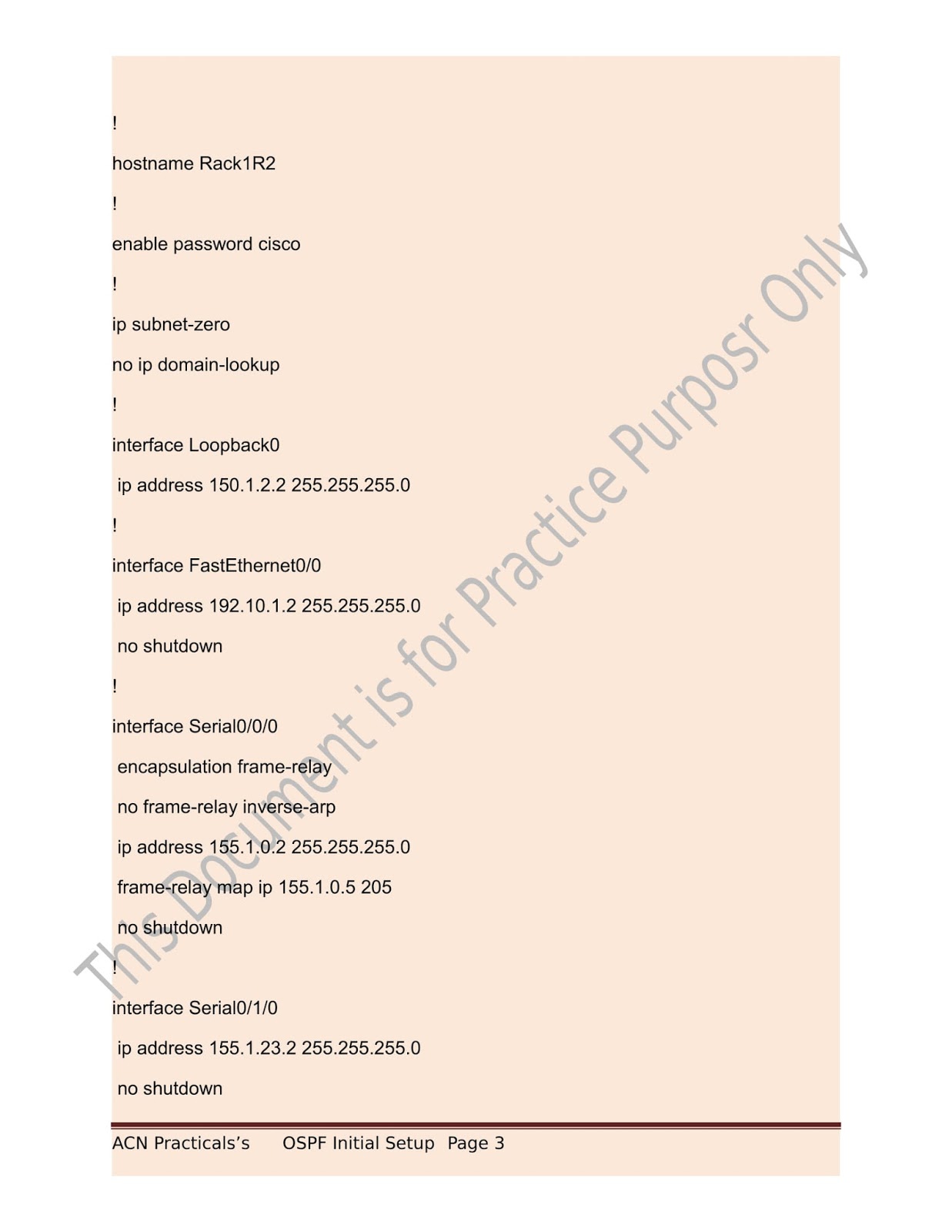

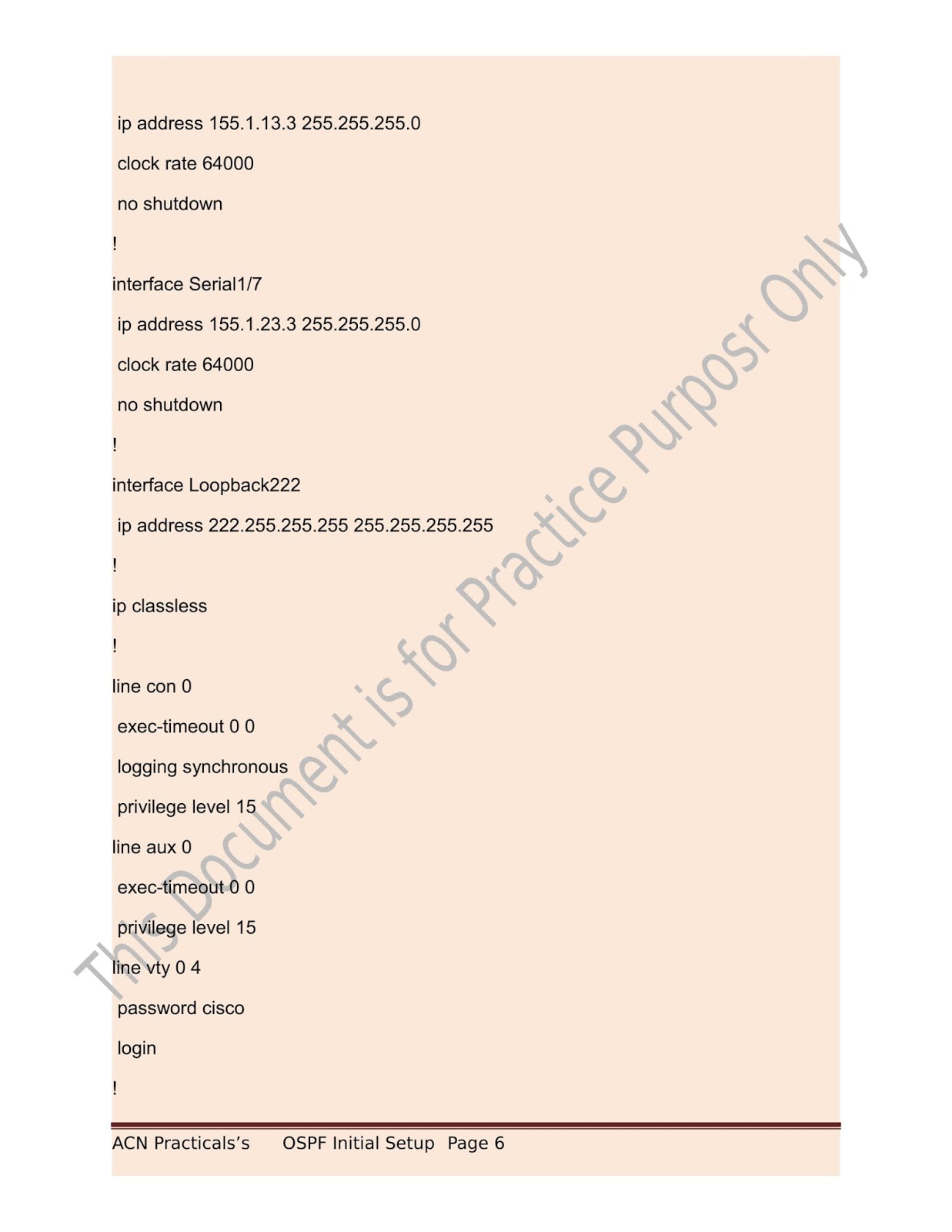

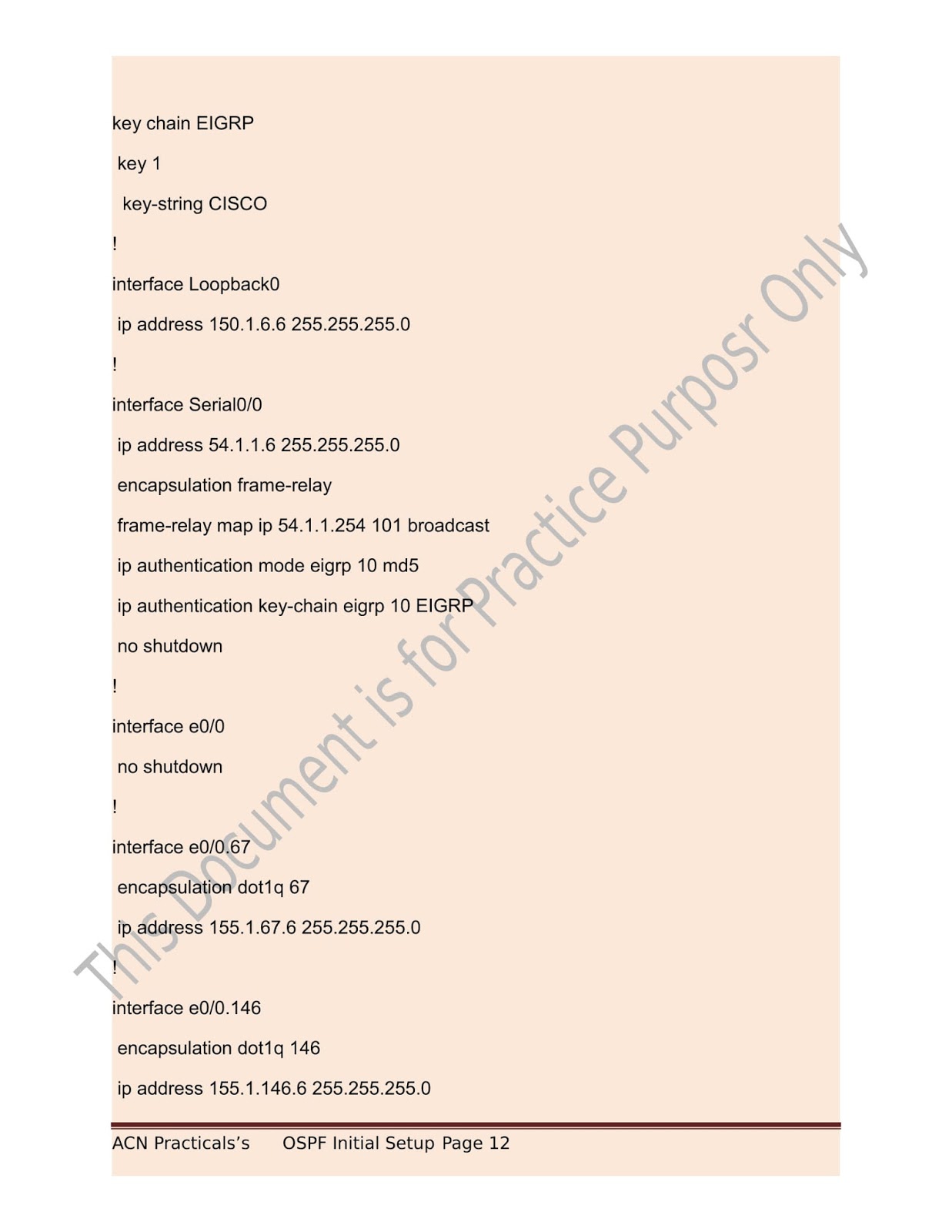

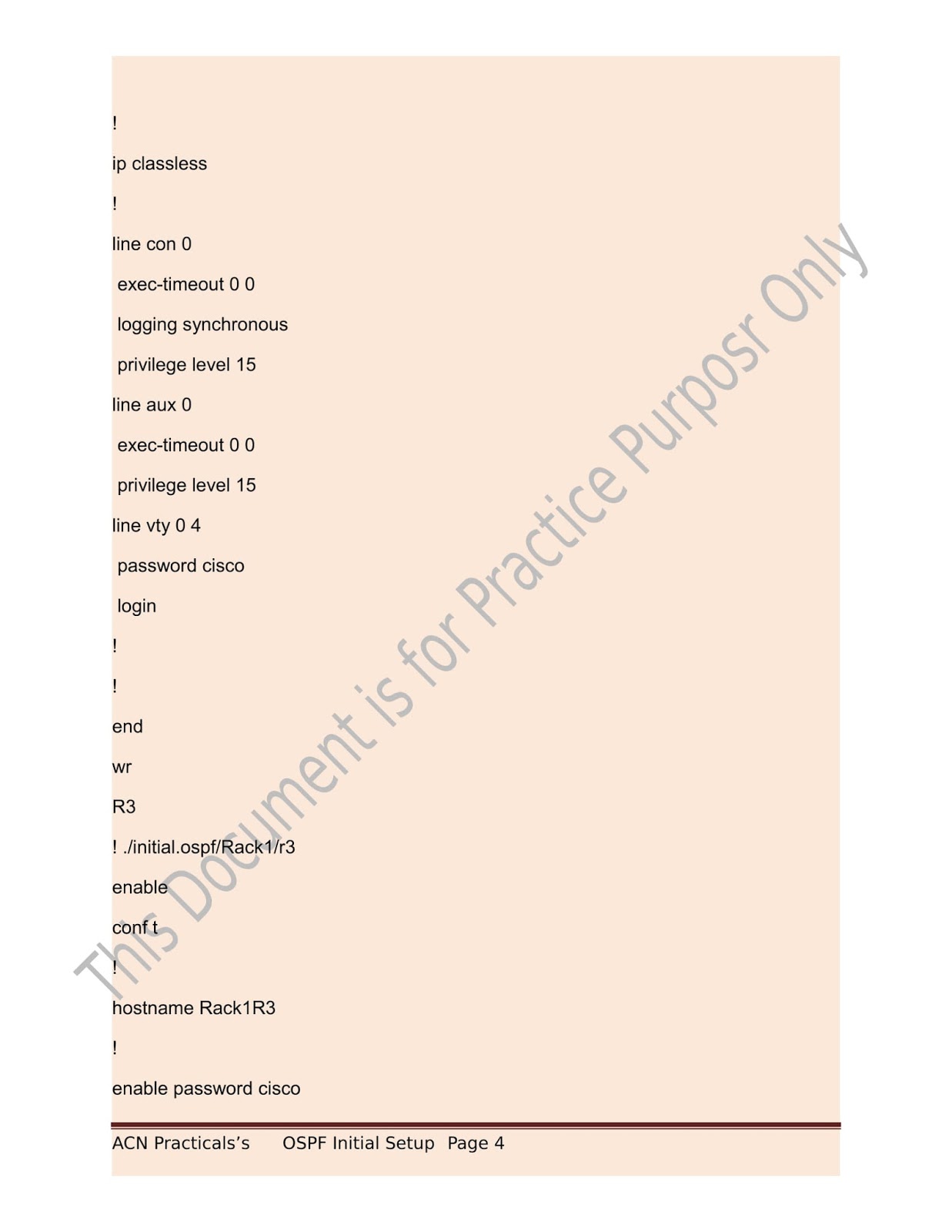

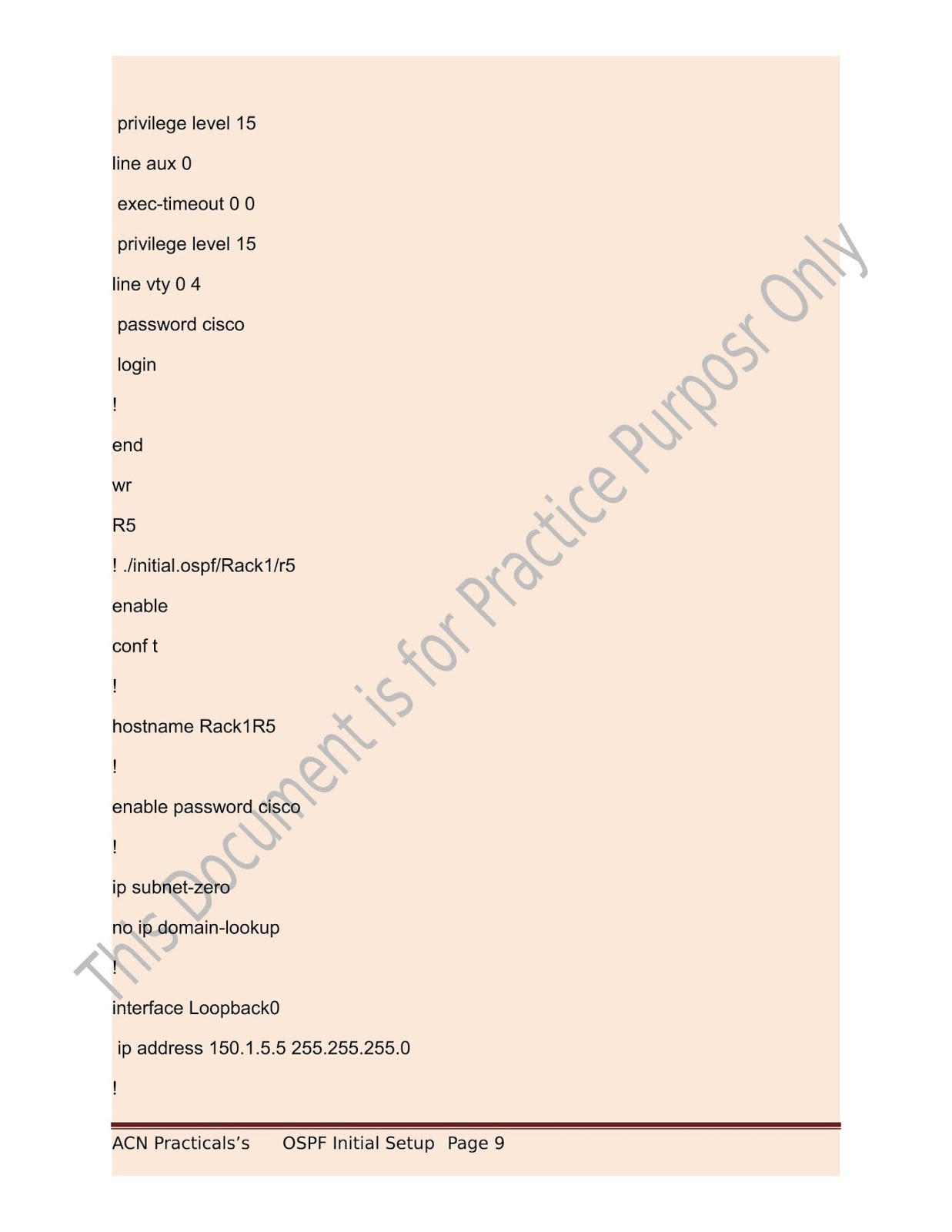

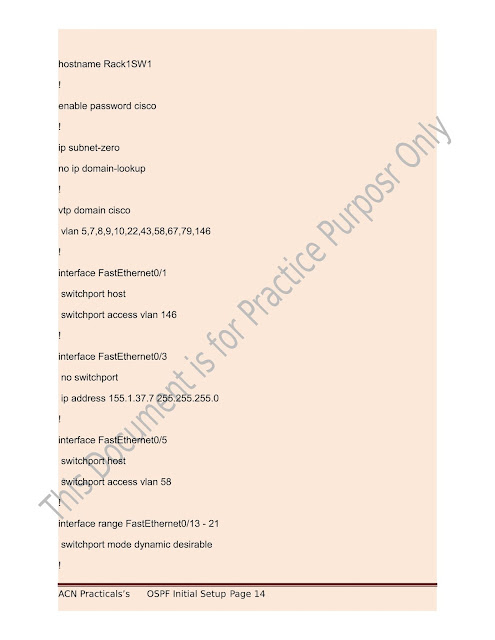

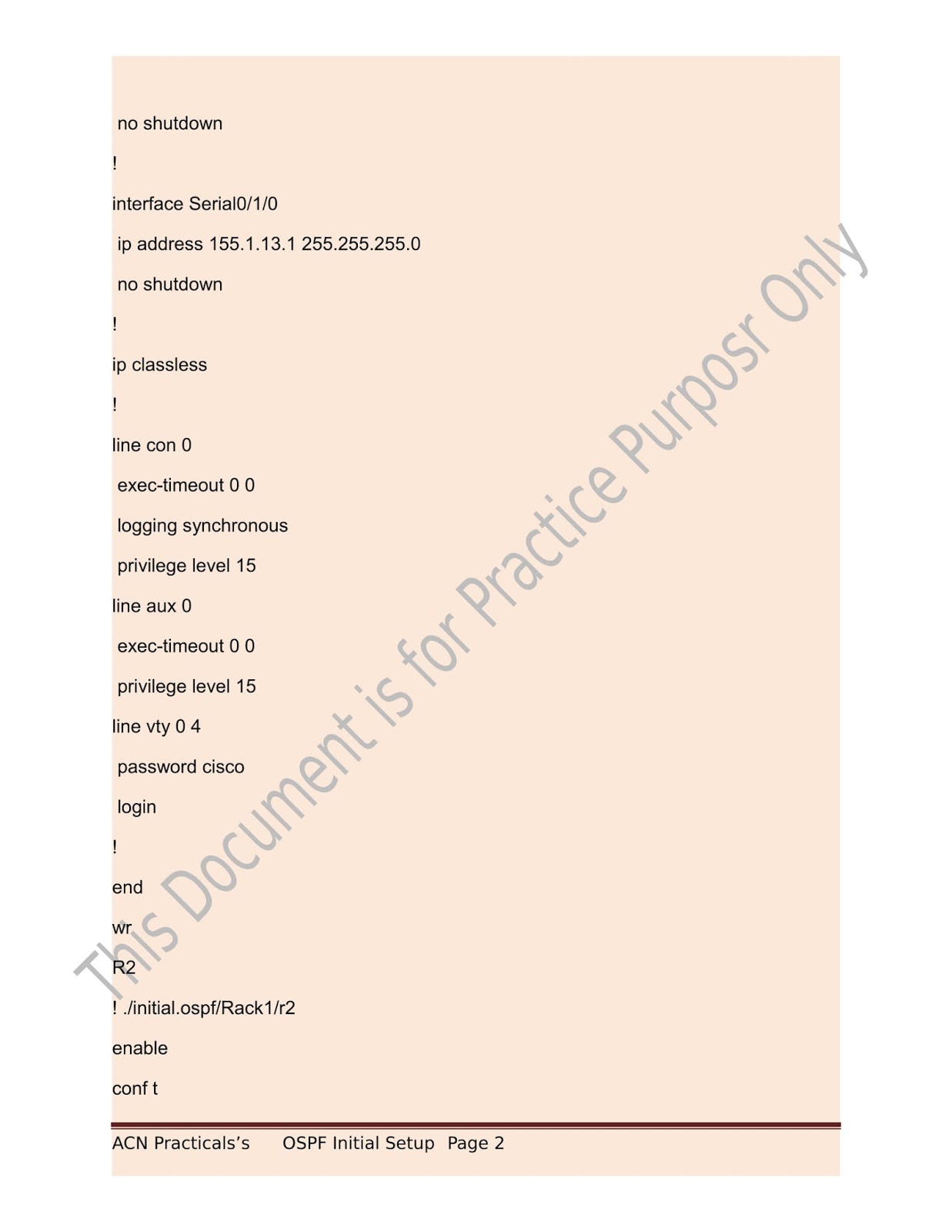

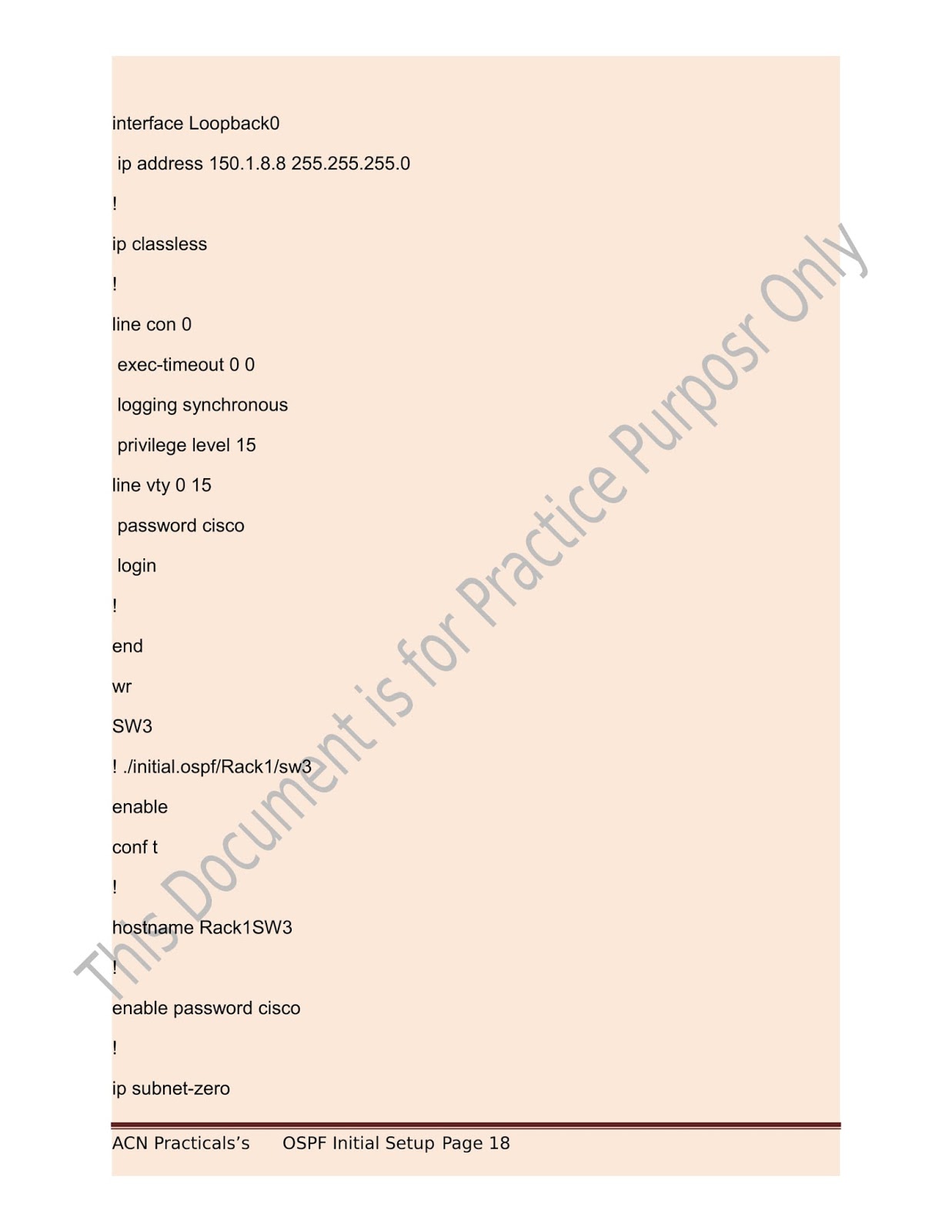

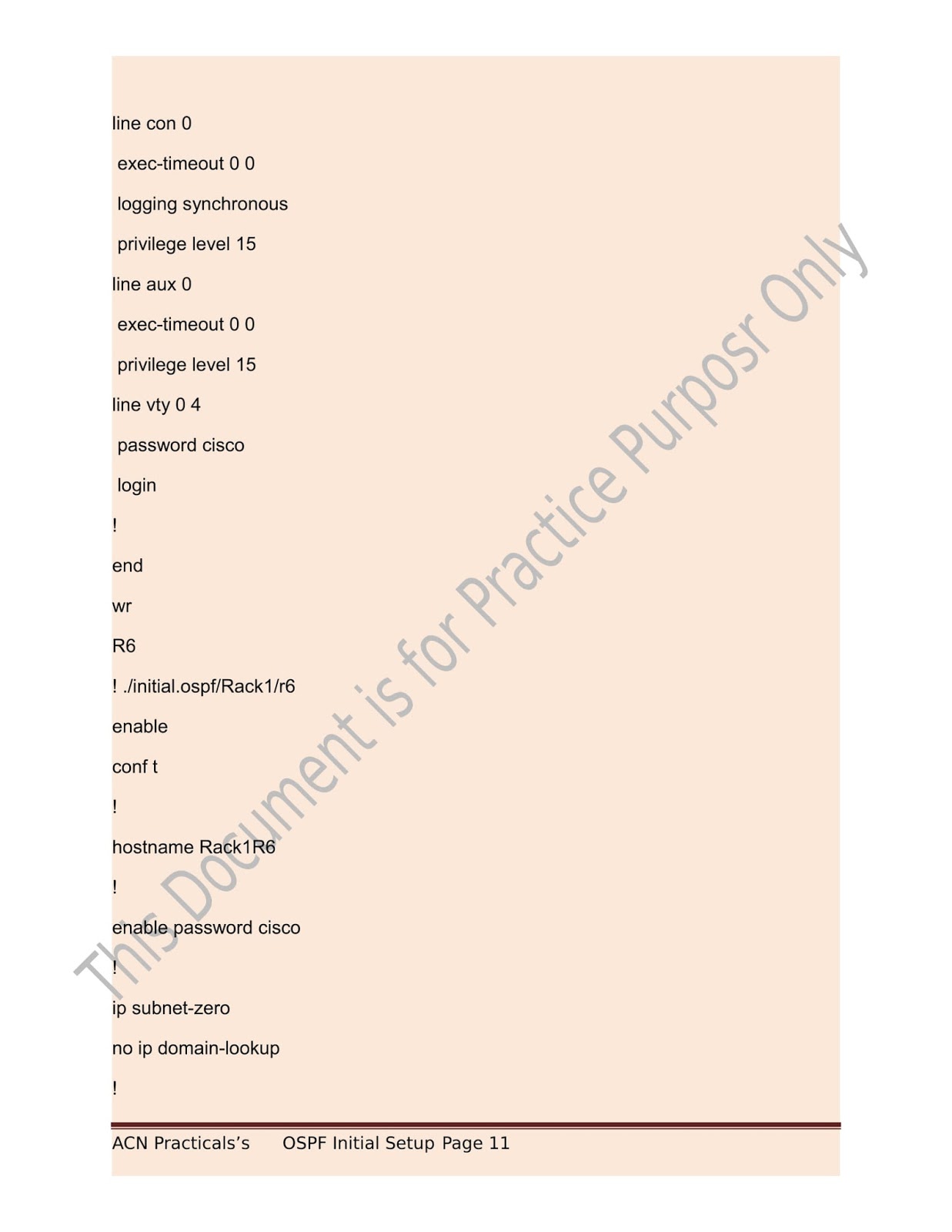

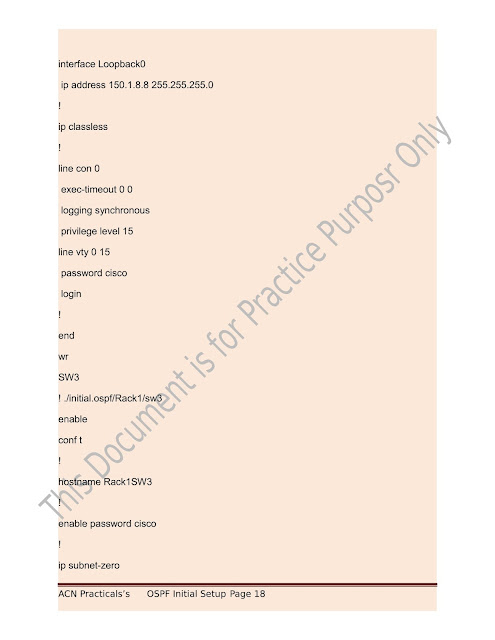

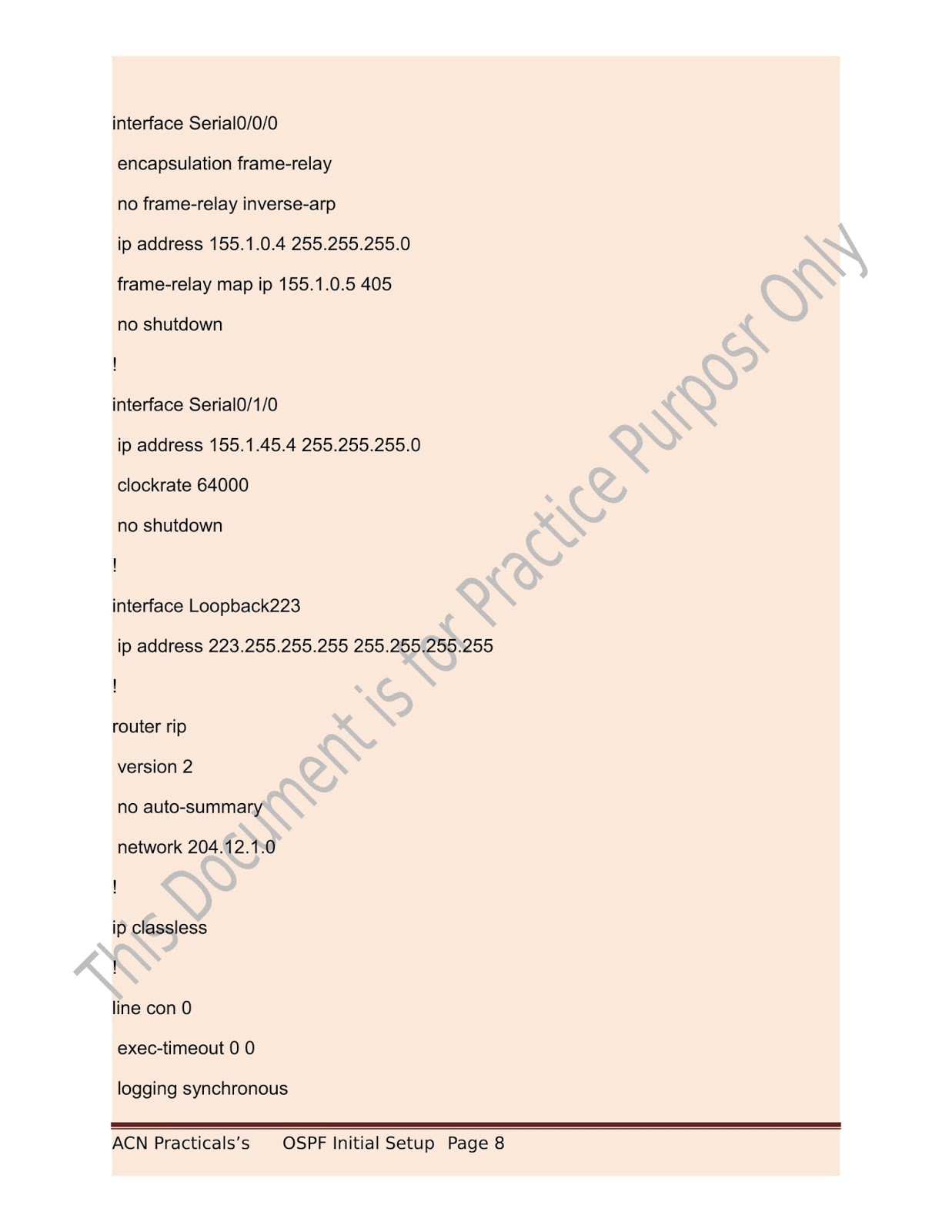

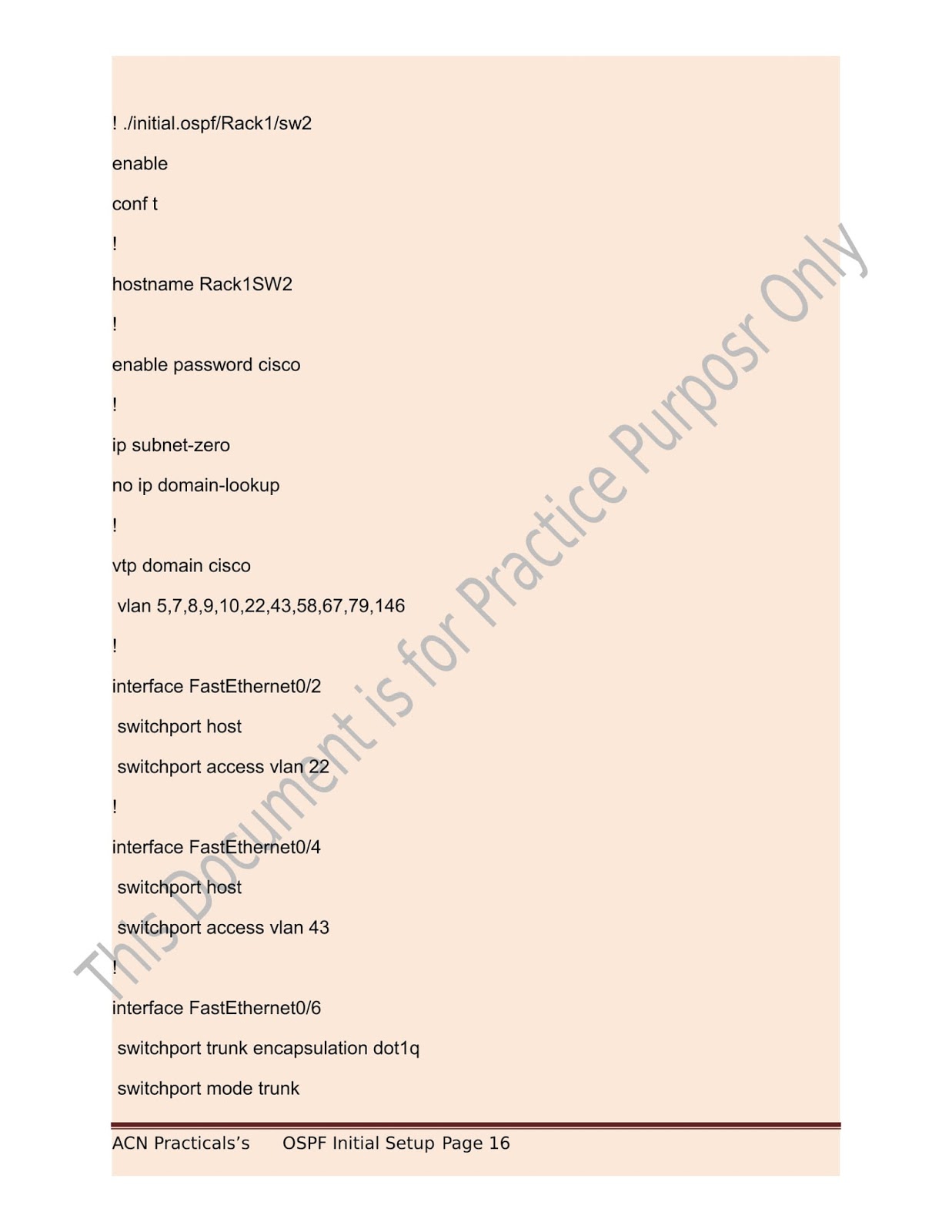

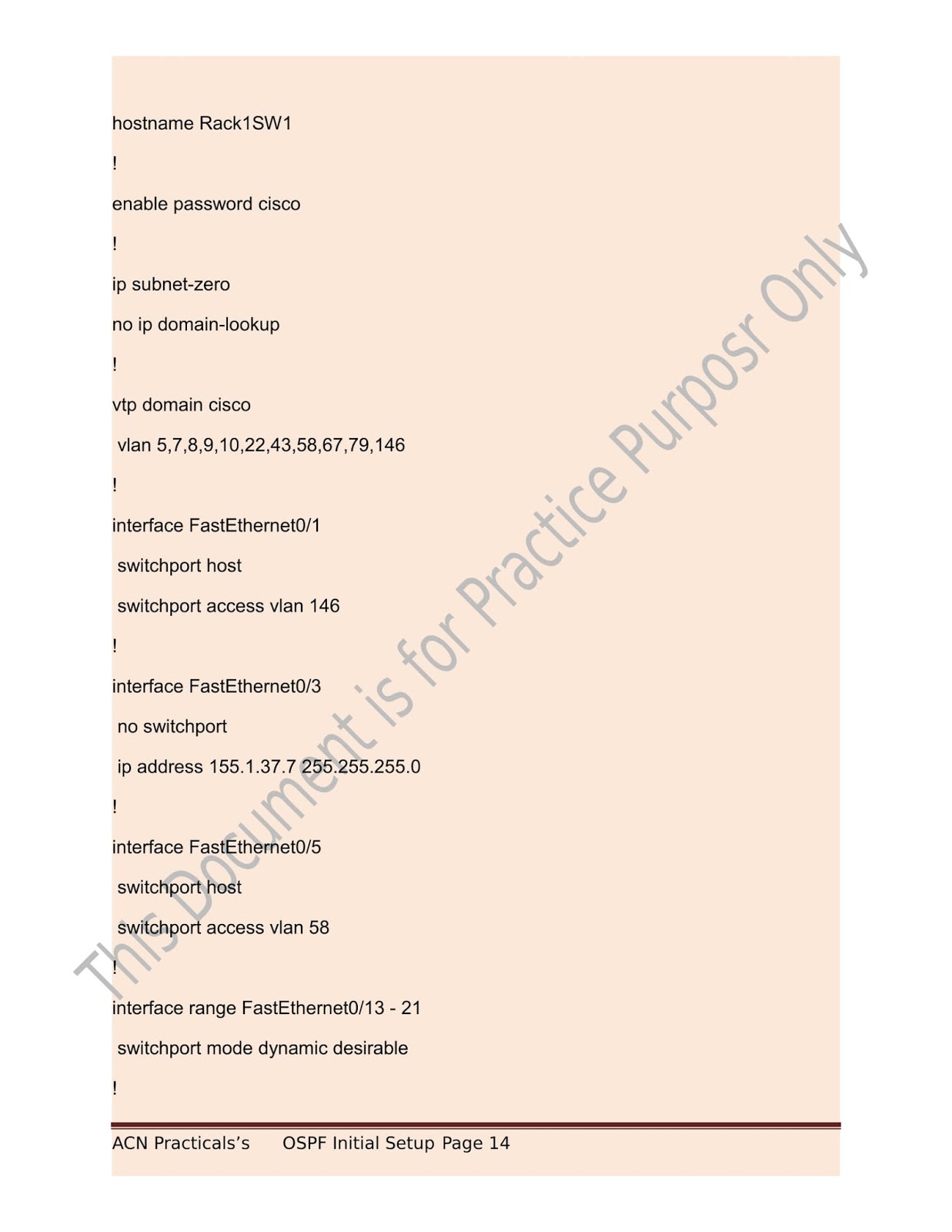

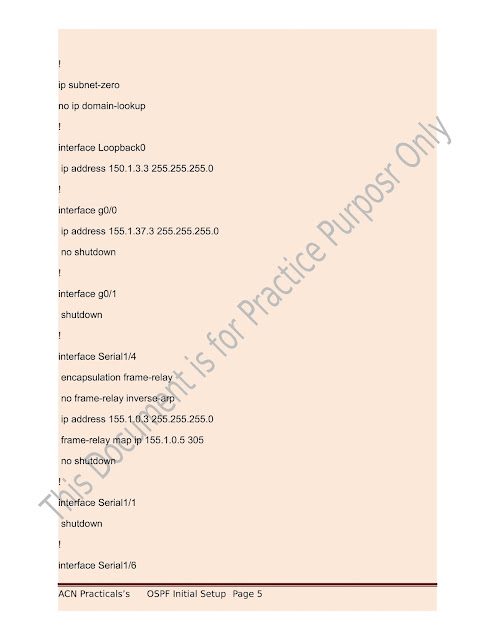

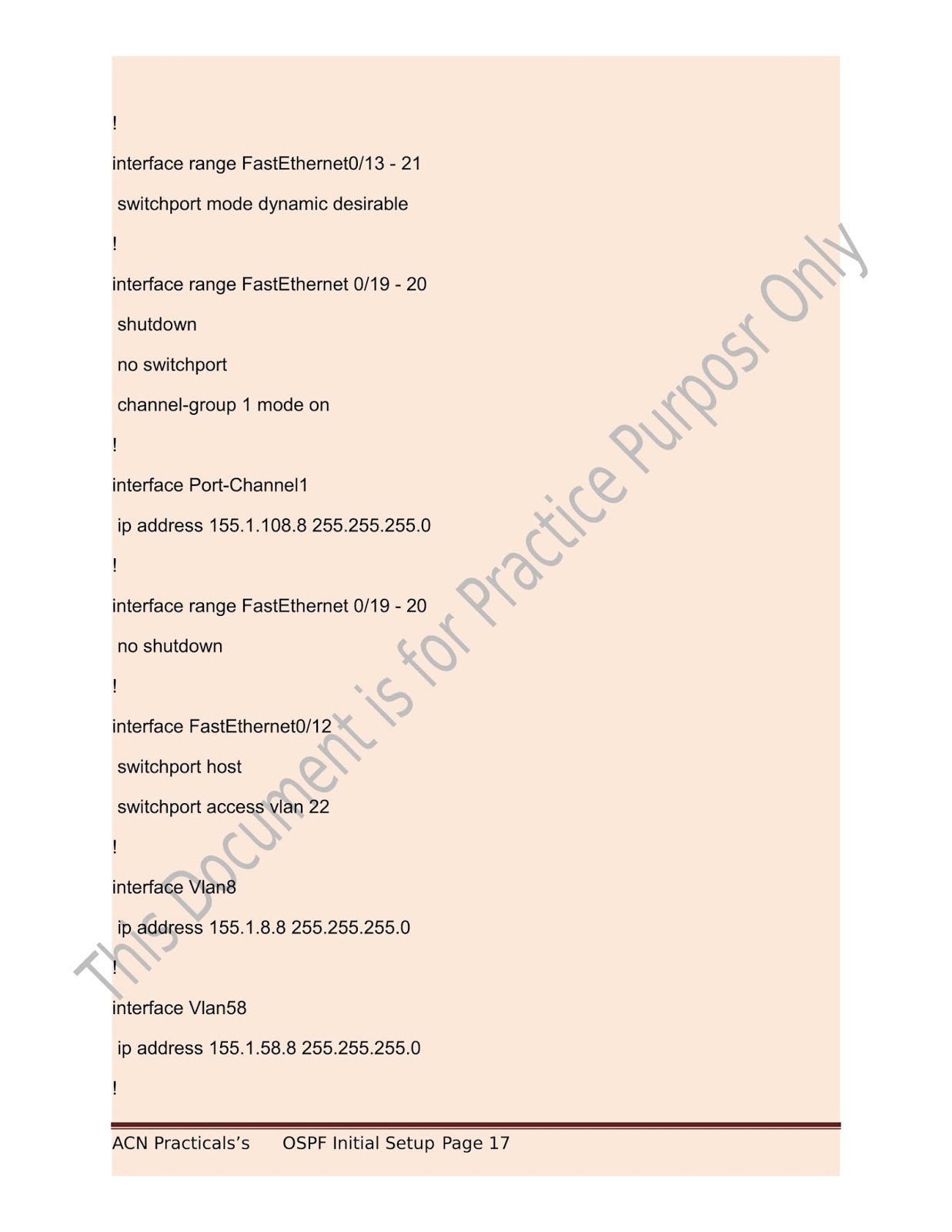

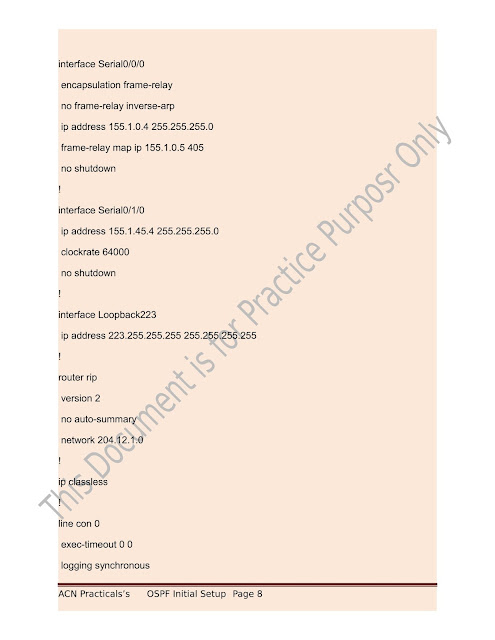

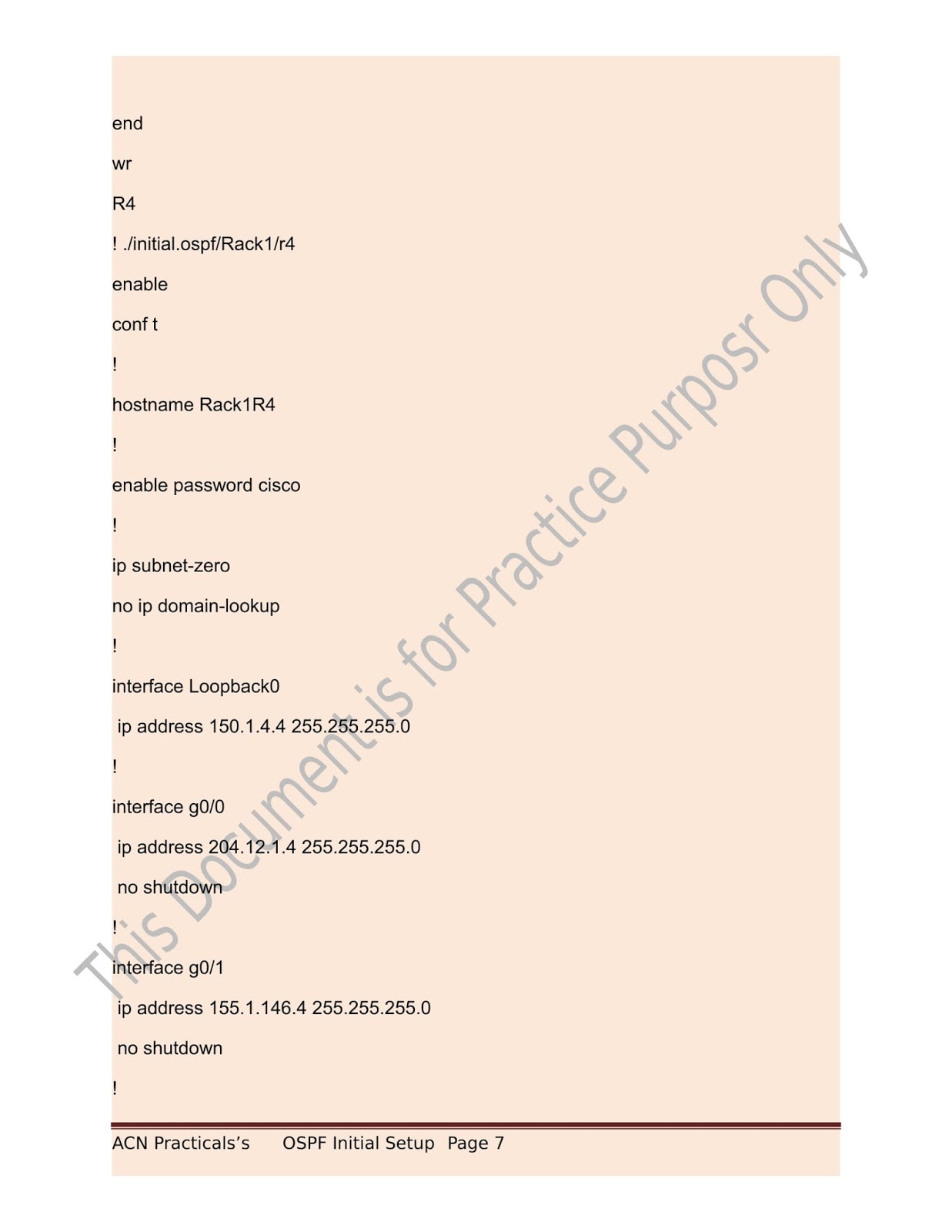

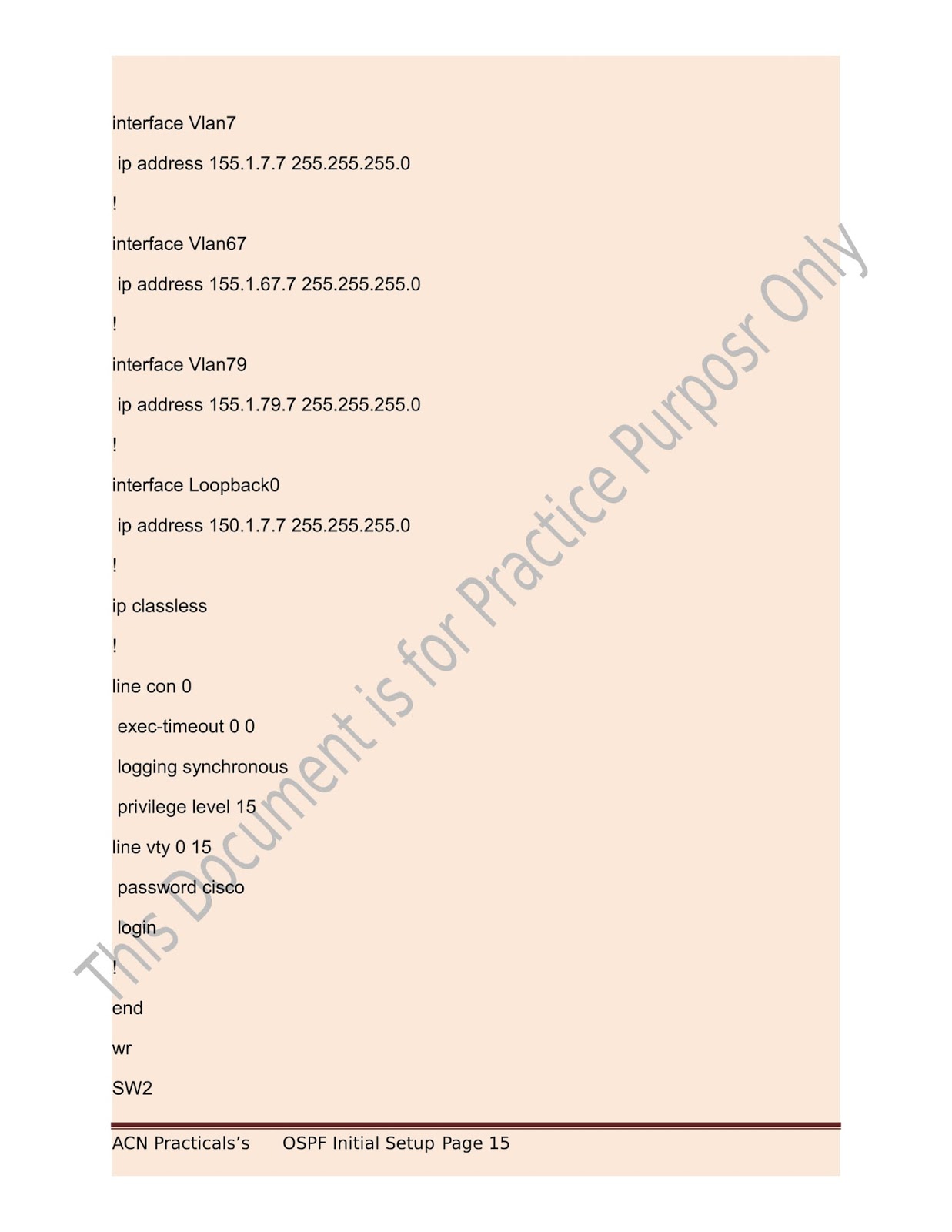

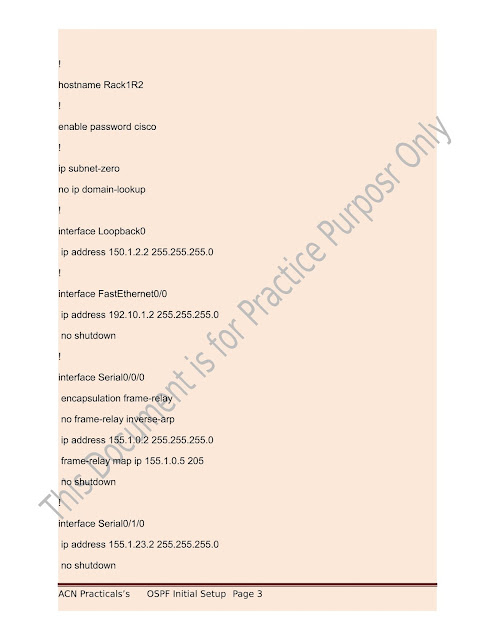

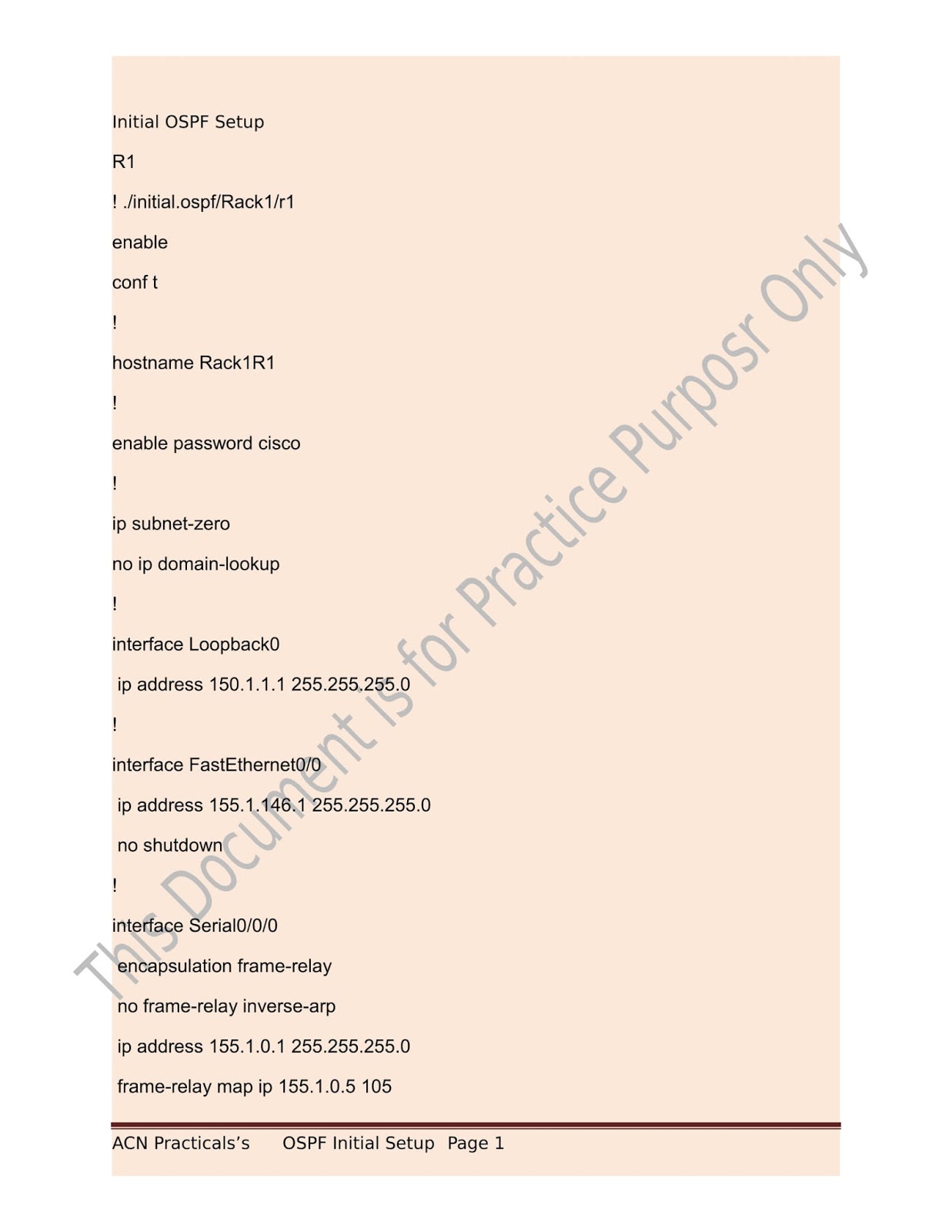

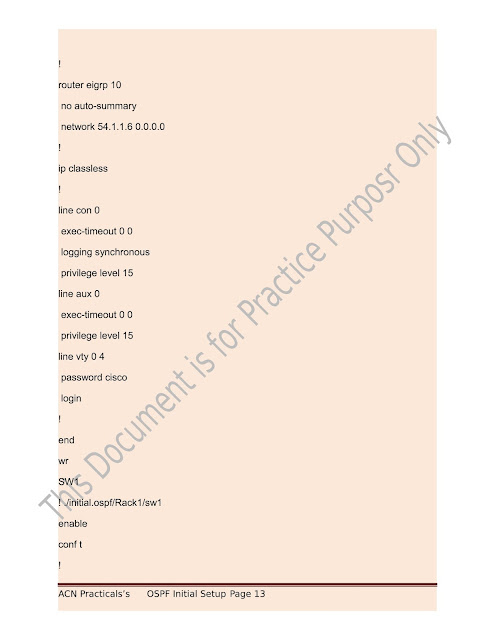

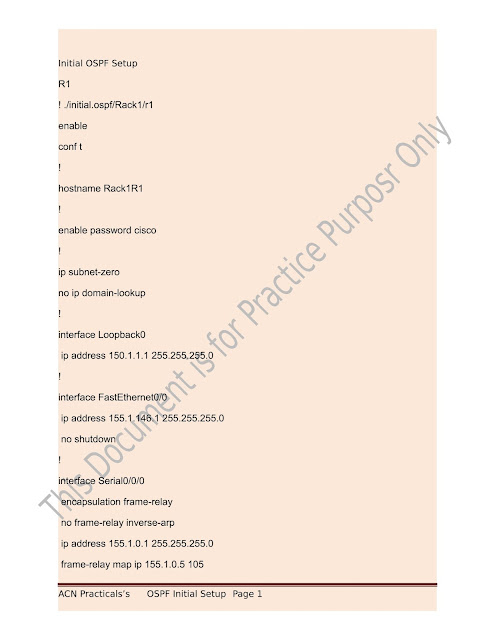

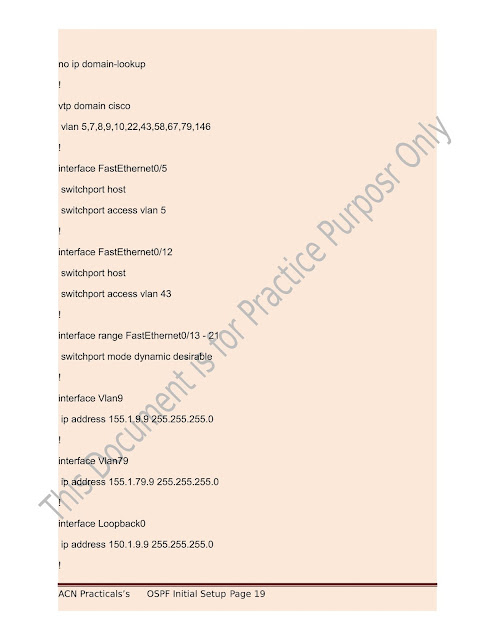

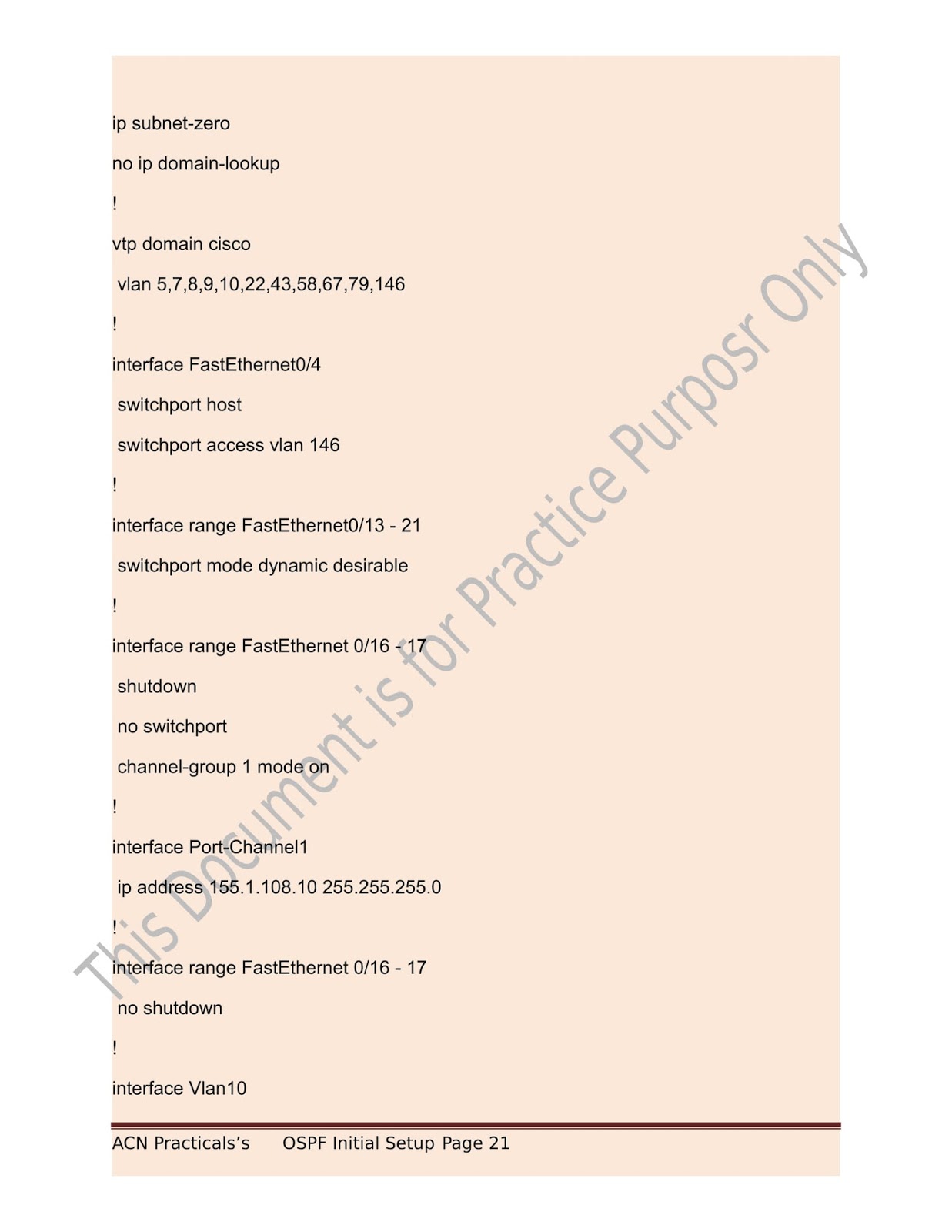

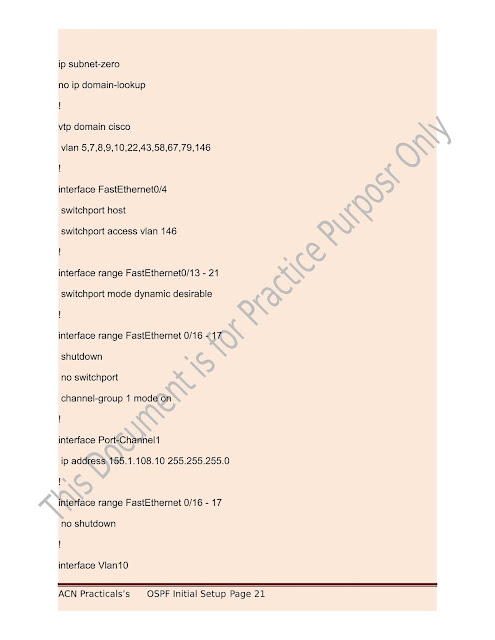

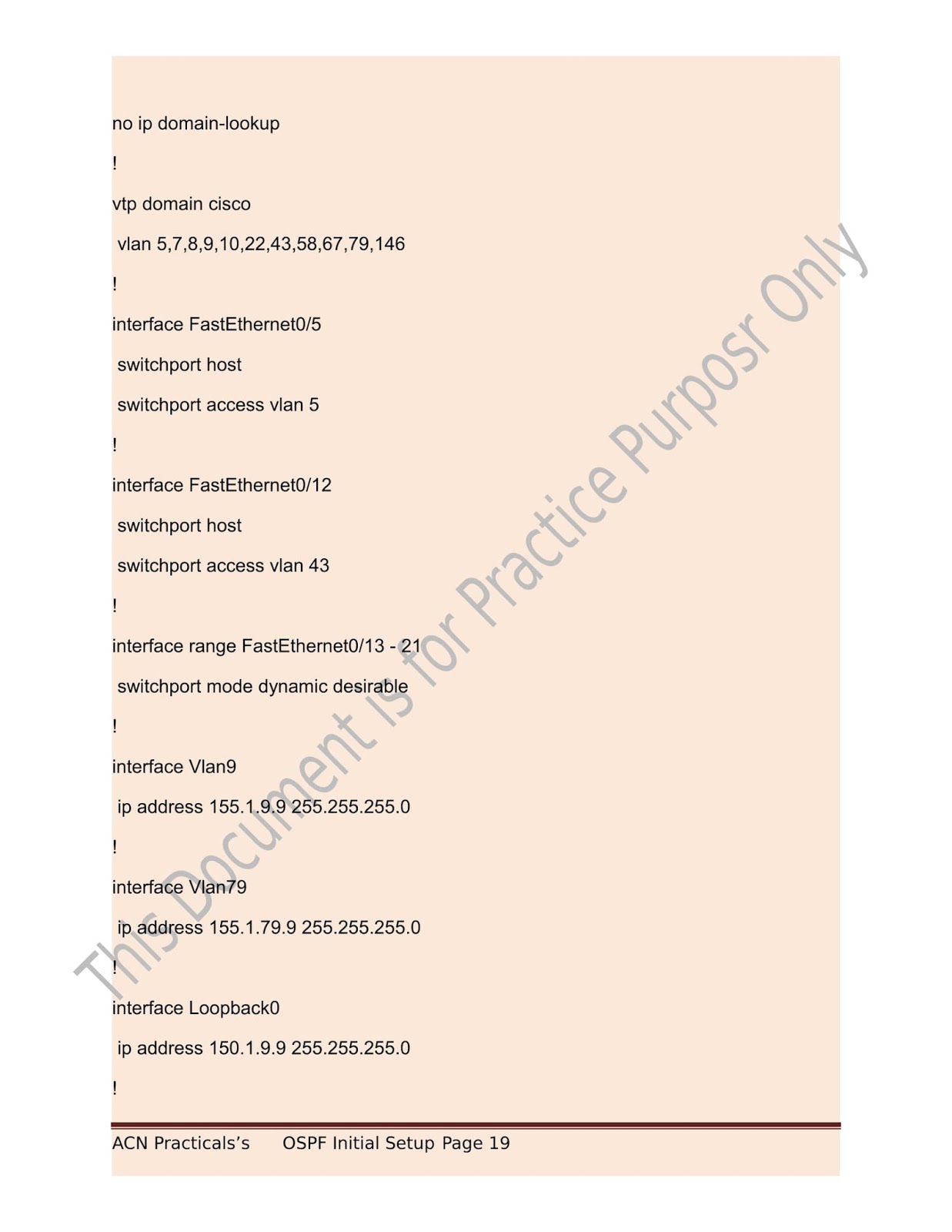

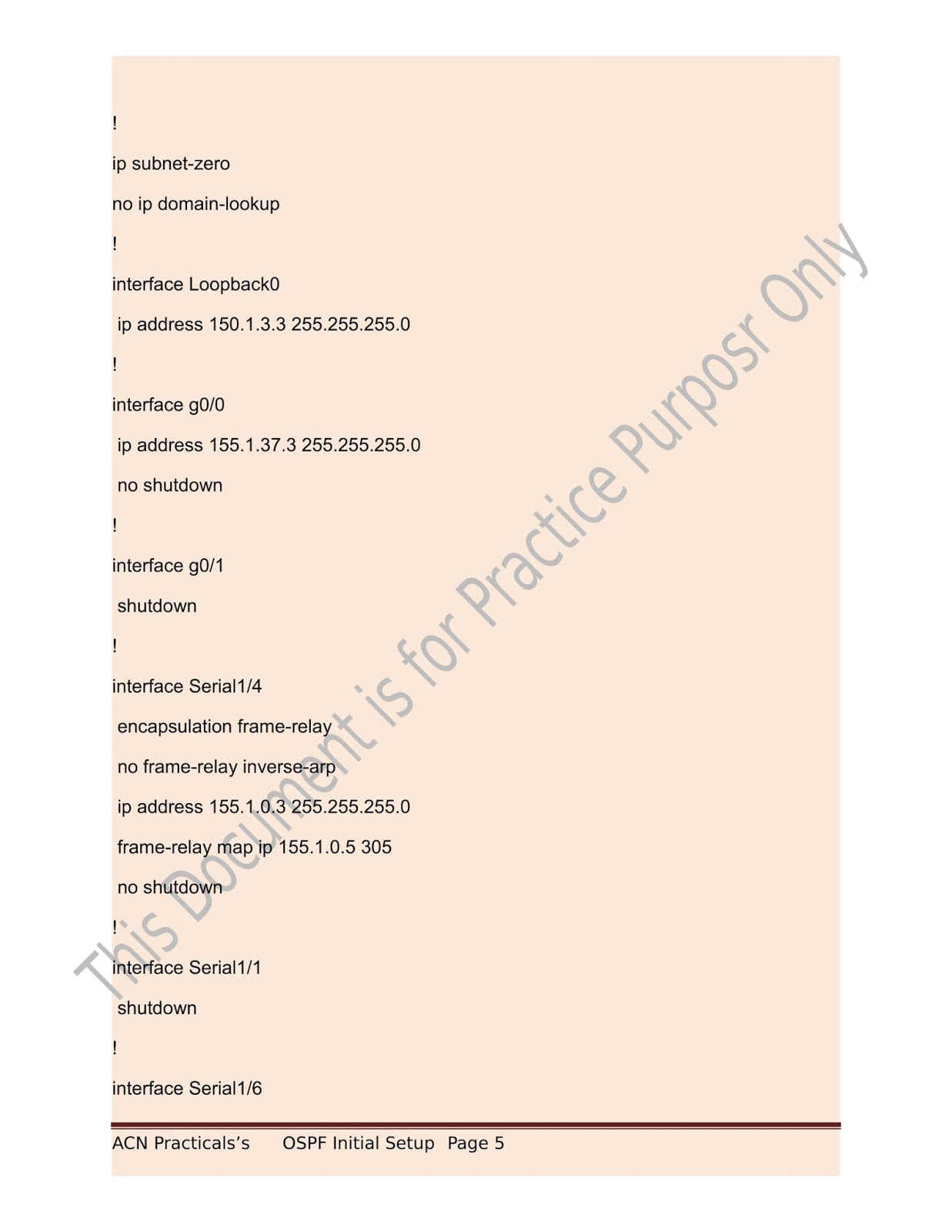

OSPF Initial Setup. Run this setup on respective Routers

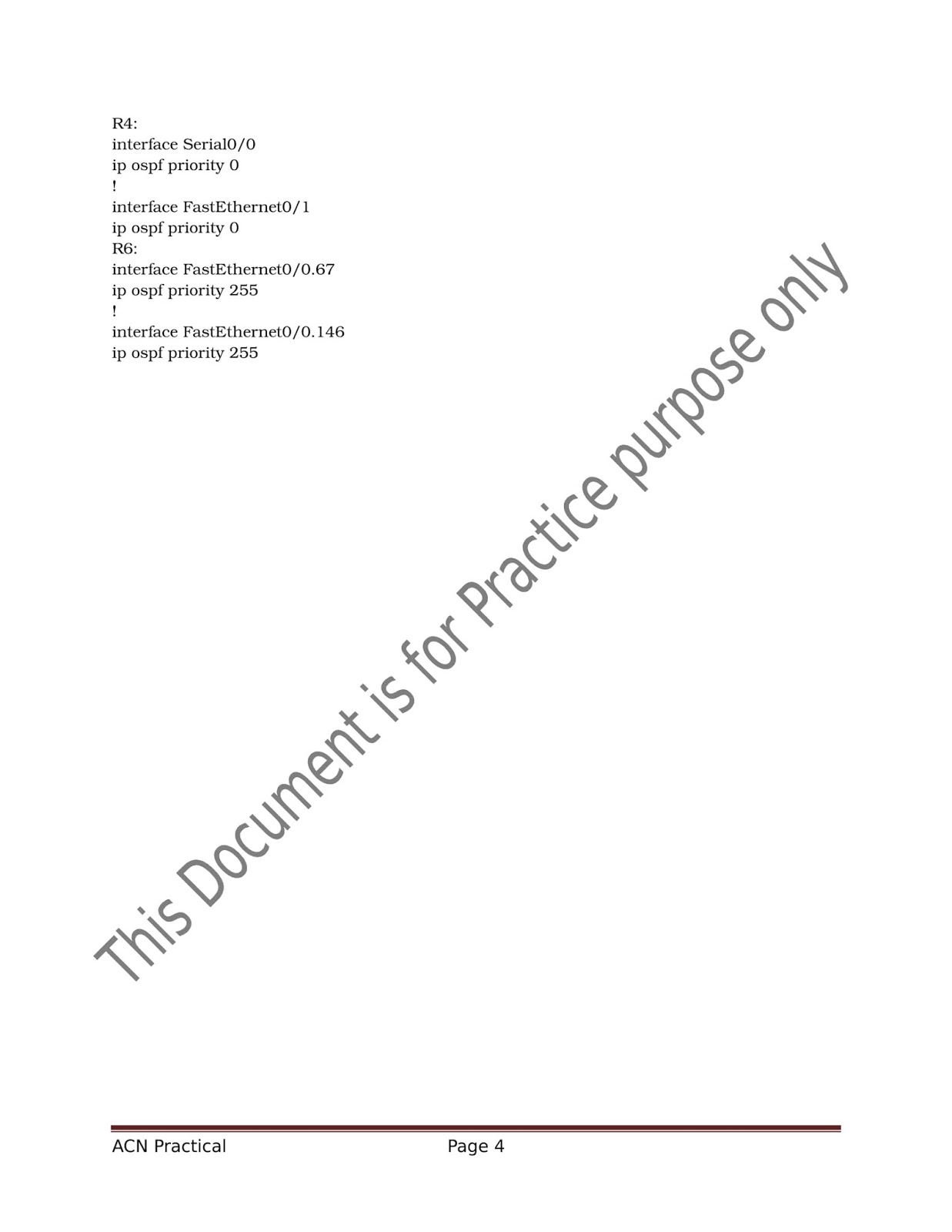

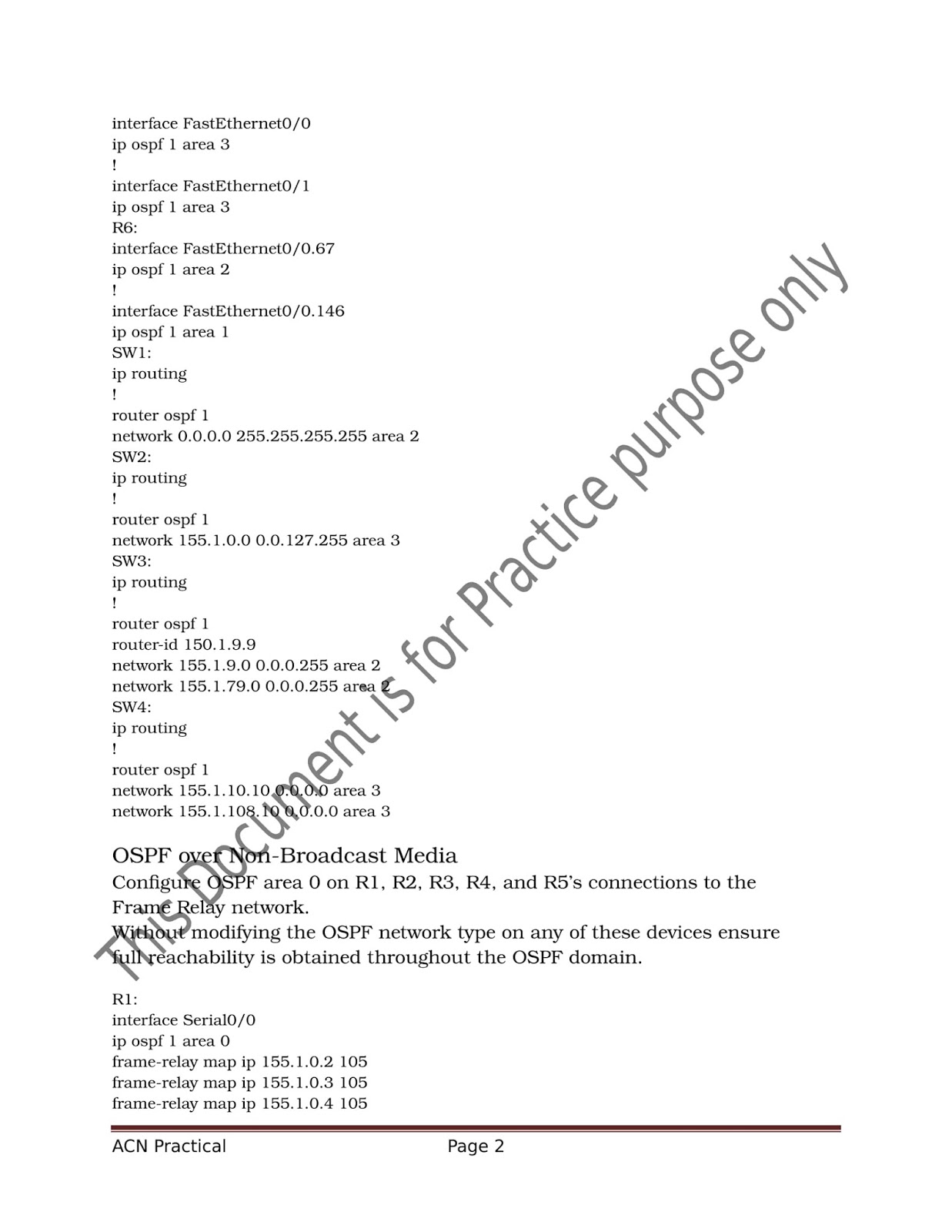

Perform The following task after initial setup

OSPF

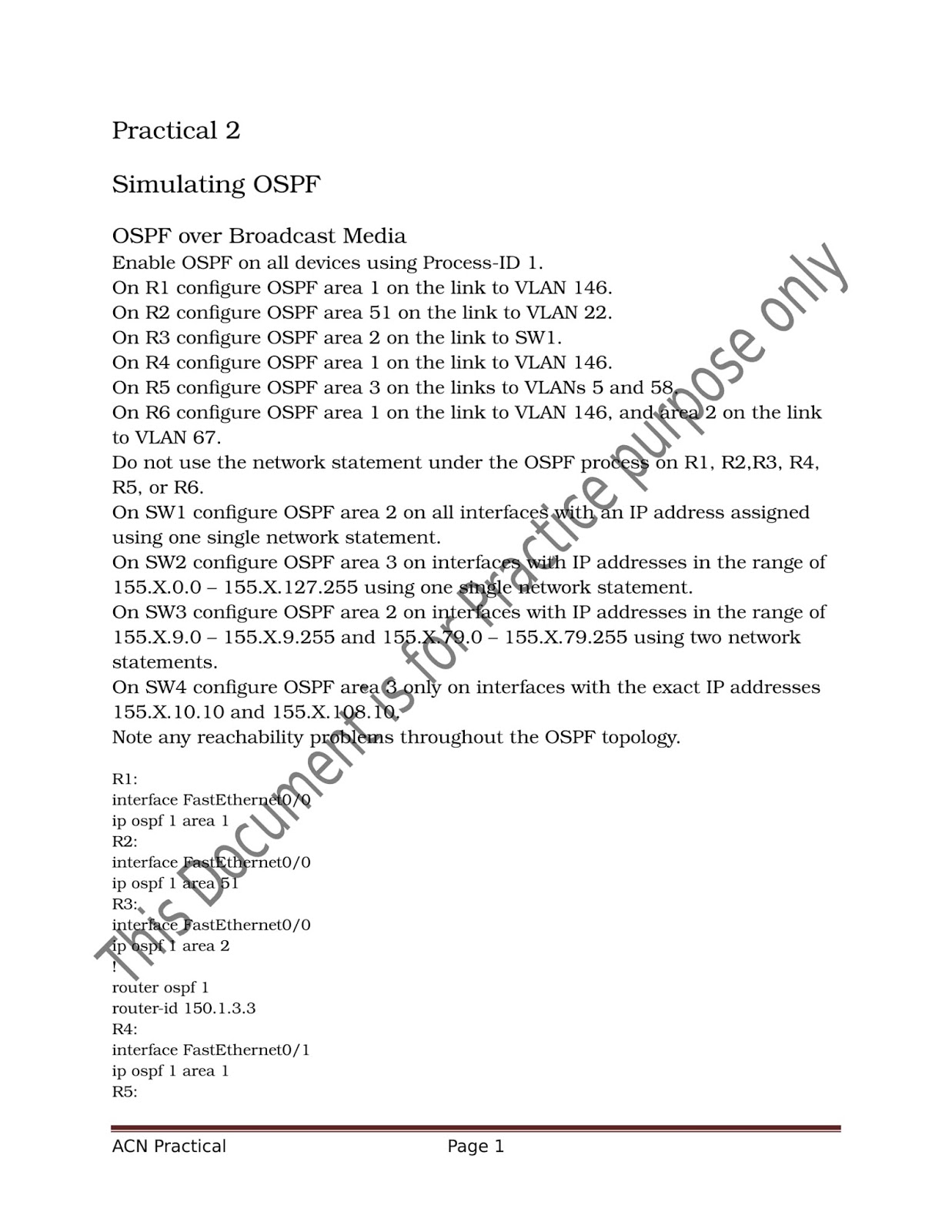

1.       OSPF over Broadcast media

interface interface-name
Enters the interface configuration for the specified port
Router-id
Specifies the id for the router
router ospf
Enables the OSPF routing process in router
ip ospf

area [area id]
Enables OSPF on an interface.
show ip ospf [process-id]
To display general information about OSPF routing processes. If it has argument as PROCESS-ID then it displays only the information for specified process
show ip ospf database database-summary
Summary of database
ip routing
Used to specify which type of routing we  are implementing
2.       over non-broadcast media
interface interface-name
Enters the interface configuration for the specified port
ip ospf

area [area id]
Enables OSPF on an interface.
Frame-relay map ip [address][DLCI]
To define the mapping between a destination protocol address and dlci used to connect to the destination address
router ospf
Enables the OSPF routing process in router
neighbour[ip address]
To configure OSPF router interconnecting to non broadcast networks
show ip ospf neighbor
Neighbor list

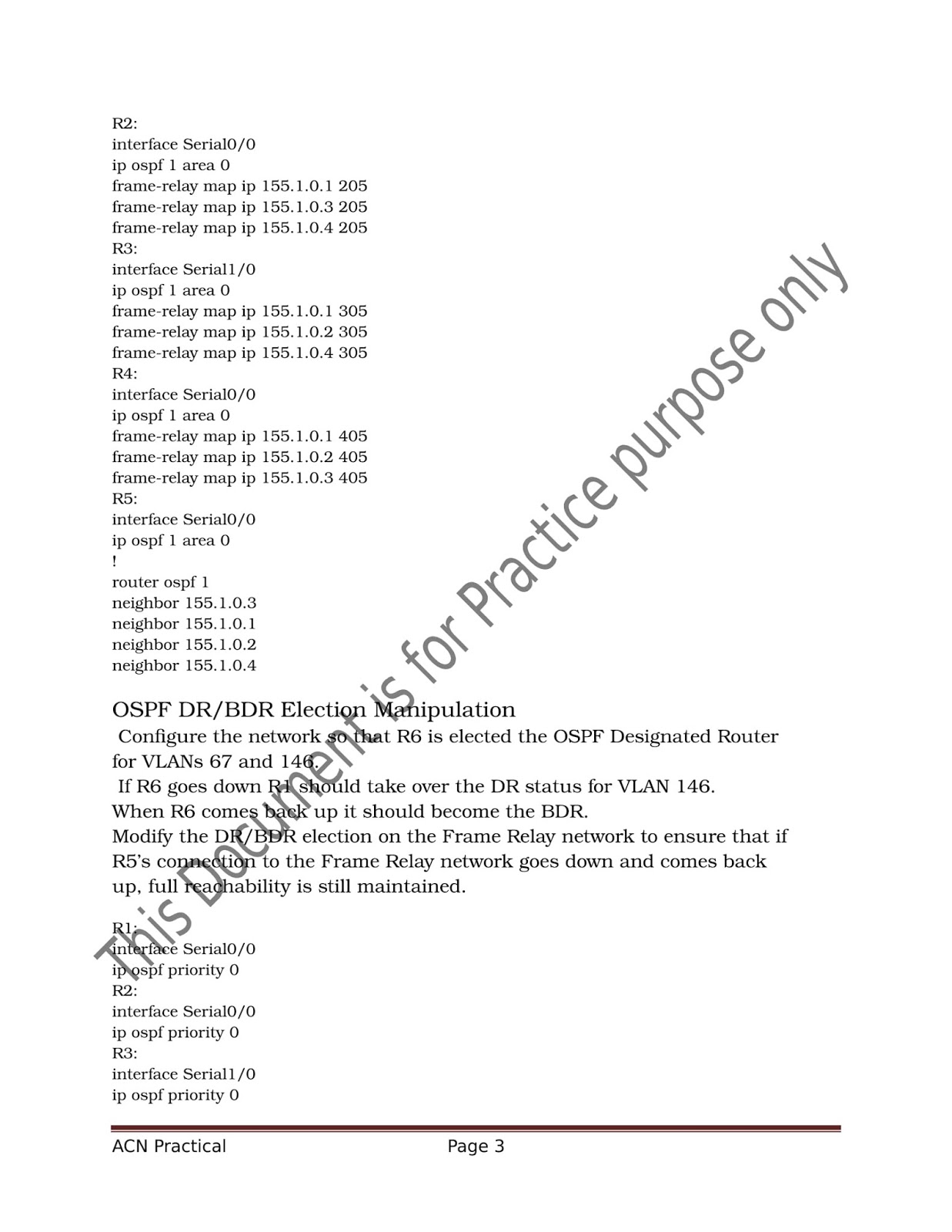

3.       DR/BDR

interface interface-name
Enters the interface configuration for the specified port
Ip ospf priority
Sets the priority for the router
show ip ospf neighbor
Neighbor list
